MA-AGP111215-30C

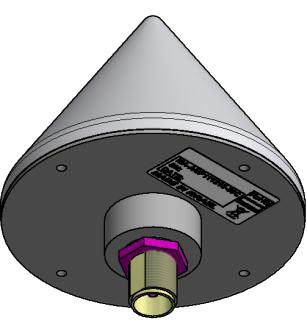

MARS Active GPS L1 (and G1), L2, and L5
MARS Active GPS L1 (and G1), L2, and L5.
The Antenna features stable and efficient performance. The antenna is small and has an aesthetic design.
Custom designs are available on request.
Get Quotation Data sheetSpecifications
Axial Ratio
2-4 dB
3 dB Beam Width-Plane
90-100°
Polarization
Right Hand Circular (RHCP)
VSWR typ.
2 : 1
GAIN, typ.
3-6dBic
Power Supply through RF Cable, typ.
3.6-5 VDC @ 25 mA (typ.)
Output Impedance
50 Ohm
Noise Figure, typ.
3 dB
LNA Gain, typ.
25 dB
Frequency Range
1560-1610MHz (L1, G1) &1170-1260MHz (L2, L5)MHz
