MA-WC2458-QP6

MA-WC2458-QP6

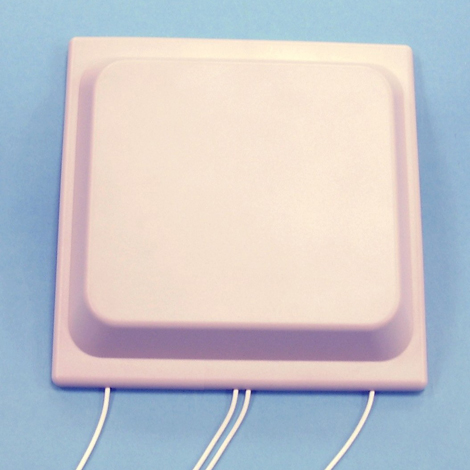

2.4-2.5 GHz & 5.15-5.875 GHz Dual Band Quad pole Sector Antenna 60°

MARS Dual Band Sector antenna provides coverage of 2.4 to 2.5 GHz & 5.15 to 5.875 GHz in a single antenna radome.

Additional Features:

  • Wide coverage.
  • Total 4 outputs.
  • Simultaneous coverage of LTE, 802.11 a, b, g, e, n, WiMAX.
  • Point-to-Multi Point, ISM and WLL applications.
  • Lightweight and durable construction.
  • Quick and easy installation.
  • UV protected radome made of polycarbonate.



See Ordering Options tab below for details on:

  • MA-WC2458-QP6
  • MA-WC2458-QP6B
  • MA-WC2458-QP6W
  • MA-WC2458-QP6N
  • MA-WC2458-QP6NB
Get Quotation Data sheet MNT installation Radiation pattern

Specifications

Frequency Range
2.4-2.5 GHz & 5.15-5.875 GHz
VSWR, max.
2 : 1
Polarization
Dual Slant ±45º & Vertical & Horizontal
3 dB Beam-Width, H-Plane, typ.
60°
3 dB Beam-Width, E-Plane, typ.
60°
Front to Back Ratio, min.
-25dB
Input power, max.
20 Watt
Port to Port Isolation, typ.
-25 dB @ 2.4 GHz; -30dB @ 5.5 GHz
Input Impedance
50 Ohm
