MA-WO3860-SISO

MA-WO3860-SISO

380-6000 MHz Wide Band SISO Omni Antenna



MARS SISO Omni Antenna provides coverage of 380-6000 MHz in a single
antenna radome. 4G, 3G, 2.5G and 2G cellular, as well as ISM, WLAN, UNII, Bluetooth, Wi-Fi, WMTS IMT-MC450 , TVWS,LTE and CBRS.
OnGo Certified Systems.

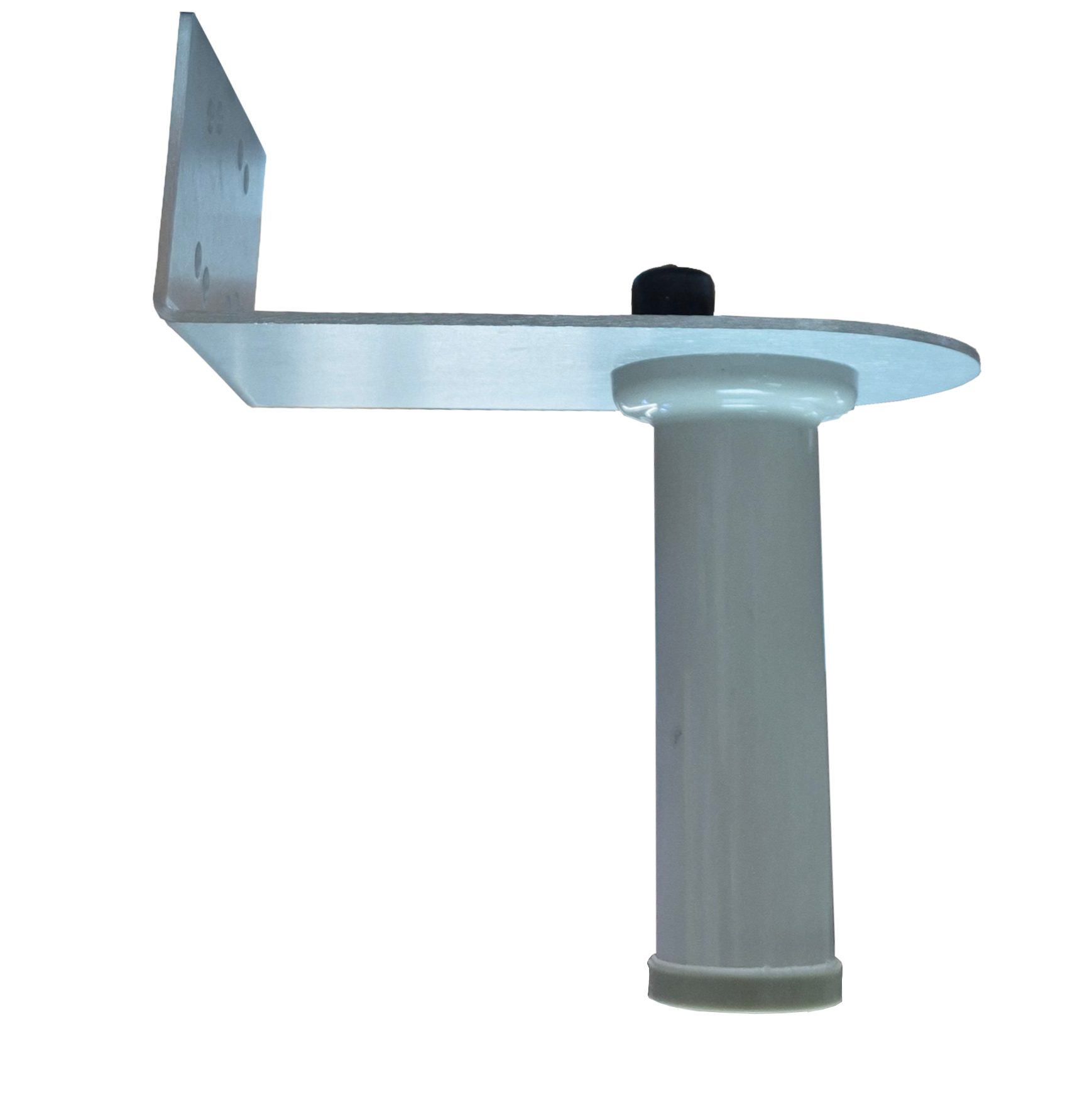

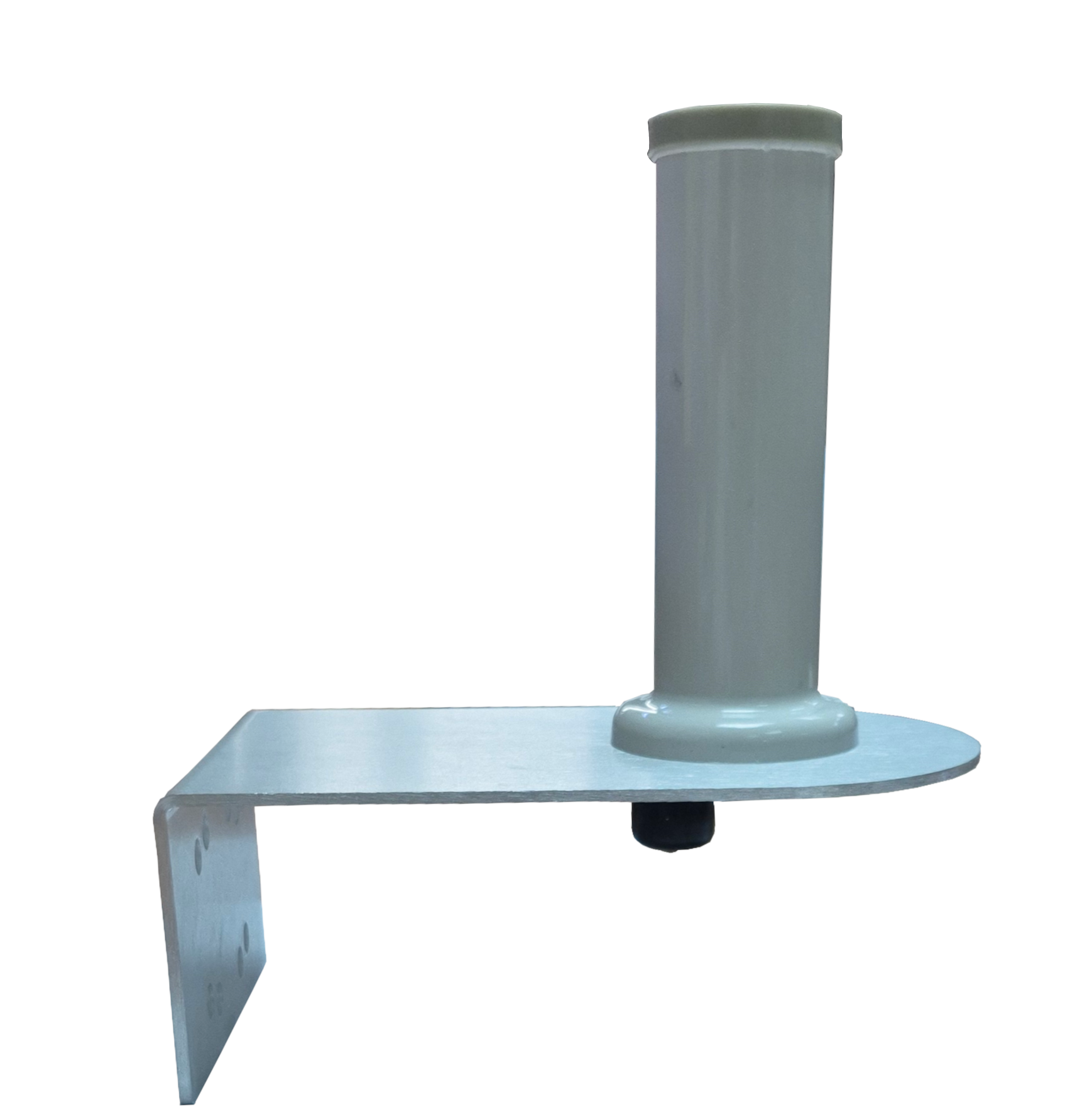

The SISO Omni Antenna is easy-installed on ceiling or 2″ Pole Mount and is
highly recommended as an outstanding logistic solution for In-Building and
outdoor installations and applications.
Additional Features:
–  Low/mid gain.
– UV protected radome made of polycarbonate.
-Low profile.

Applications:

  • Tetra
  • TV White Space
  • LoRa
  • GSM
  • LTE
  • Wi-Fi
  • CBRS
  • Public Safety Services: Fire, Police, Security
  • Rapid Deployment Installations
  • Large Scale WLL
  • Personal Area Network (PAN)
  • MESH Networks

Benefits include:

 – Wide frequency range to support TETRA,  TV White Space, GSM,  LTE, Wi-Fi, CBRS and more

 – Supports Indoor and outdoor applications (Ceiling  and pole mount)

 – Compact design

Get Quotation Data sheet MNT installation Radiation pattern

Specifications

Frequency Range
380-1200 MHz
1200 -1900 MHz
1900-3300 MHz
3300-6000 MhZ
GAIN, typ.
0.5 -5dBi
6dBi
7dBi
8dBi
VSWR, max.
2.5:1 .@380-500 MHz
< 2.2:1 @500-6000 MHz
Polarization
Linear ,Vertical
Input power, max.
50 Watts
Input Impedance
50 Ohm
PIM, 3rd order, 2X20W
<-155 dBc
Patterns
OMNI Directional
