MA-CM36-15

MA-CM36-15

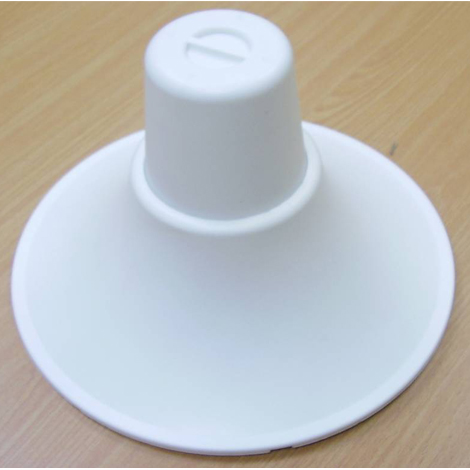

Multi Band Omni Antenna

MARS Multi Band Omni Antenna covers all the bands for 2G, 2.5G and 3G cellular, as well as ISM, WLAN and Bluetooth.

The antenna is aesthetic, small and has unobtrusive profile that blends easily with any environment.

The antenna is easy-installed and is highly recommended as an outstanding logistic solution for In-Building Installations.

The model is available in the iBwave Database.

For further information click here or go to iBwave website



Get Quotation Data sheet MNT installation Radiation pattern Print Page

Specifications

Standart
SMR, AMPS, CDMA, TDMA, GSM 900
PCS, DECT,GSM 1900,UMTS
Bluetooth,ISM,WLAN
Frequency Range
806-960 MHz
1.71-2.17 GHz
2.3-2.7 GHz
GAIN, typ.
2 dBi
3-4 dBi
5 dBi
VSWR, max.
2 : 1
1.5 : 1
1.6 : 1
Polarization
Linear, Vertical
Input power, max.
50 Watt
Input Impedance
50 Ohm
Lightning Protection
DC Grounded
